HP
Latex 630 Series
Your first step into HP Latex production - 1.6 m wide, with white ink and print & cut options.
The HP Latex 630 series brings HP's water-based Latex technology to growing sign and display businesses: a 1.6 m (64") print width, up to 35 m²/hr, and odourless prints that are dry and ready to finish straight off the printer. Available with white ink and as a Print & Cut Plus solution.
- 1 year warranty as standard - extend up to 5 years
- Personal 1-to-1 service from a team with over 25 years' experience
- Delivery, installation and training available
- Nationwide engineer support from HP large format specialists

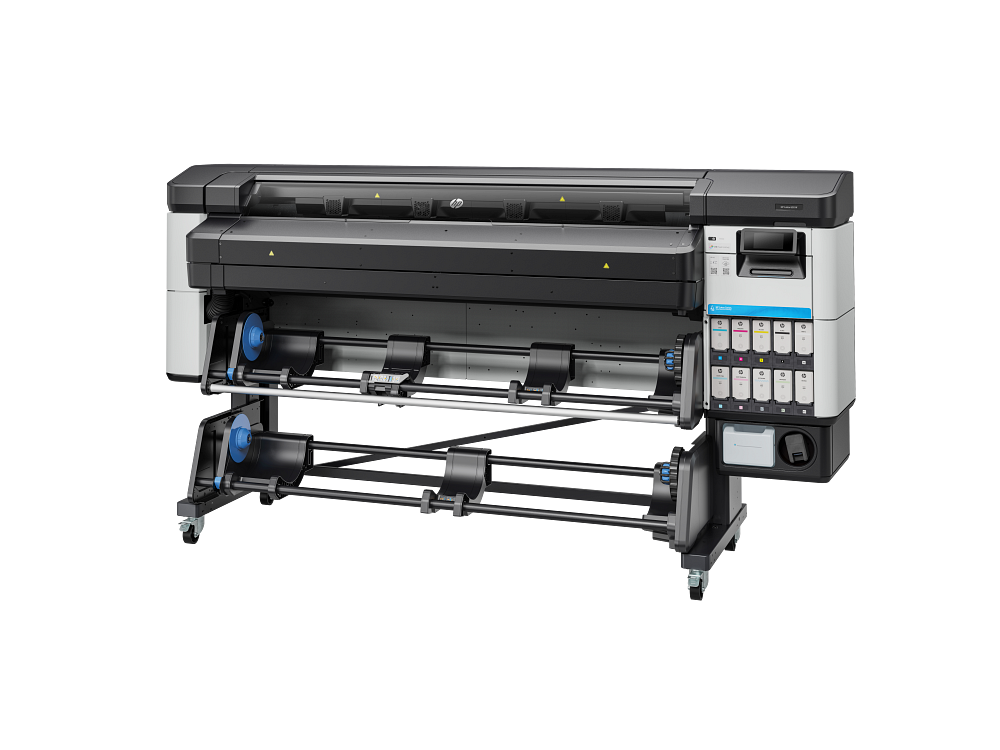

The HP Latex 630 is HP's entry production Latex printer, built for print shops that want to produce indoor and outdoor graphics on one machine. It prints up to 1625 mm wide on rolls up to 42 kg, at up to 35 m²/hr in draft and 14 m²/hr in standard quality - fast enough for day-to-day signage, vehicle graphics and wallcoverings.
Because HP Latex inks are water-based and cured inside the printer, prints come out dry and can be laminated, cut or installed straight away. There's no outgassing time and no strong solvent smell, so the printer suits shared spaces and the prints are certified for sensitive indoor environments.
The 630 W adds HP Latex white ink, with automatic white ink recirculation and an offline chamber that parks the white printhead when you don't need it - so white is there for window graphics, coloured and transparent media without slowing down your CMYK jobs. If you also want to contour cut stickers and decals, the Print & Cut Plus solutions pair either printer with the HP Latex 64 Plus Cutter and SAi Flexi Print Cut software for a complete print-and-cut workflow.
Every 630 comes with HP's one-year limited hardware warranty, and you can extend parts and labour cover to up to five years in total when you buy through us.
| Technology | HP Latex inks |
|---|---|
| Max resolution | Up to 1200 x 1200 dpi |
| Max speed | 35 m²/hr (2-pass) |
| Standard quality | 14 m²/hr (6-pass) |
| Other modes | 18 m²/hr (4-pass), 11 m²/hr (8-pass), 8 m²/hr (12-pass), 7 m²/hr backlit/textile (14-pass) |
| White modes (630 W) | Spot 6, overflood 3, underflood 2, 3-layer 1 m²/hr |
Ink
| Ink colours | Cyan, magenta, yellow, black, light cyan, light magenta, Latex optimiser, Latex overcoat (+ white on 630 W) |
|---|---|
| Cartridges | HP 832, 1 litre |
| Printheads | 5 (6 on 630 W) |
Media
| Max print width | 1625 mm (64") |
|---|---|
| Roll width | 457 - 1625 mm (580 - 1625 mm with full support) |
| Max roll weight | 42 kg |
| Max roll diameter | 250 mm |
| Media thickness | Up to 0.5 mm |
| Cutter | Automatic horizontal cutter |
Physical & power
| Dimensions (W x D x H) | 2603 x 844 x 1405 mm |
|---|---|
| Weight | 230 kg (630 W: 236 kg) |
| Power consumption | 1.4 - 2.1 kW printing (2.9 kW peak) |
| Power supply | 200 - 240 V; 5 A printer cord + 12 A curing cord |
| Operating conditions | 15 - 30 °C, 20 - 80% RH |
| Connectivity | Gigabit Ethernet |
HP Latex 64 Plus Cutter (Print & Cut Plus)
| Cutting width | 158 cm |
|---|---|
| Max cutting speed | Up to 113 cm/s (diagonal) |
| Downforce | 1 - 600 g |
| Media thickness | 0.05 - 0.25 mm (up to 0.6 mm with specialty blade) |
| Software | SAi Flexi Print Cut |
| Connectivity | USB, LAN |
Warranty
| Standard | One-year limited hardware warranty |
|---|---|
| Extended | Parts & labour cover up to 5 years in total |
- 1 year HP warranty as standard on every HP Latex 630
- Extend parts and labour cover up to 5 years - choose your term in the quote form
- Nationwide engineer support from HP large format specialists
- UK delivery to your premises
- Professional installation and setup by our engineers
- On-site training so your team is printing from day one
Why choose the HP Latex 630?
Up to 35 m²/hr
Draft output up to 35 m²/hr and 14 m²/hr in standard indoor/outdoor quality, at up to 1200 x 1200 dpi.
Dry, ready-to-use prints
Prints are cured in the printer, so they can be laminated, cut and installed immediately - no outgassing wait.
White ink option
The 630 W recirculates white ink automatically and parks the white printhead offline when it isn't needed. Spot, underflood, overflood and 3-layer modes.
Easy to run
Front media loading, automated printhead cleaning and user-replaceable printheads keep downtime to a minimum.

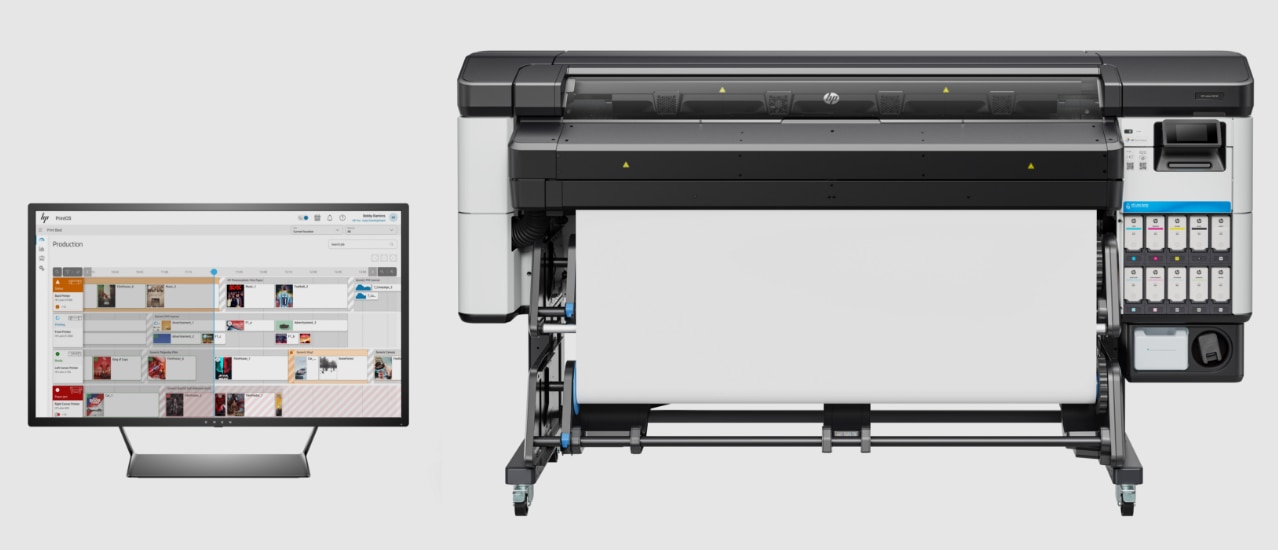

Remote monitoring
10 GB on-board job storage and HP PrintOS let you check printer status and production from anywhere.
Safer, odourless inks
Water-based HP Latex inks with UL ECOLOGO, UL GREENGUARD Gold and EPEAT credentials - ideal for indoor work.
Which Latex 630 is right for you?
Every model in the HP Latex 630 range shares the same print engine and print width - here's what sets them apart.

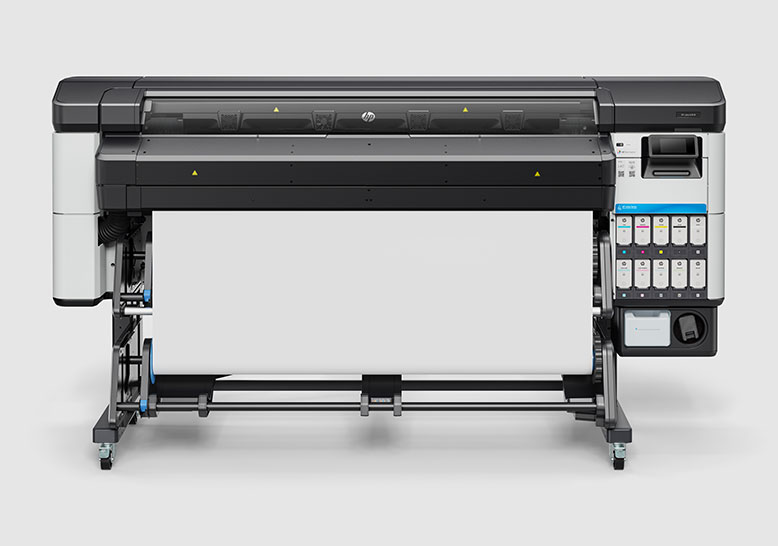

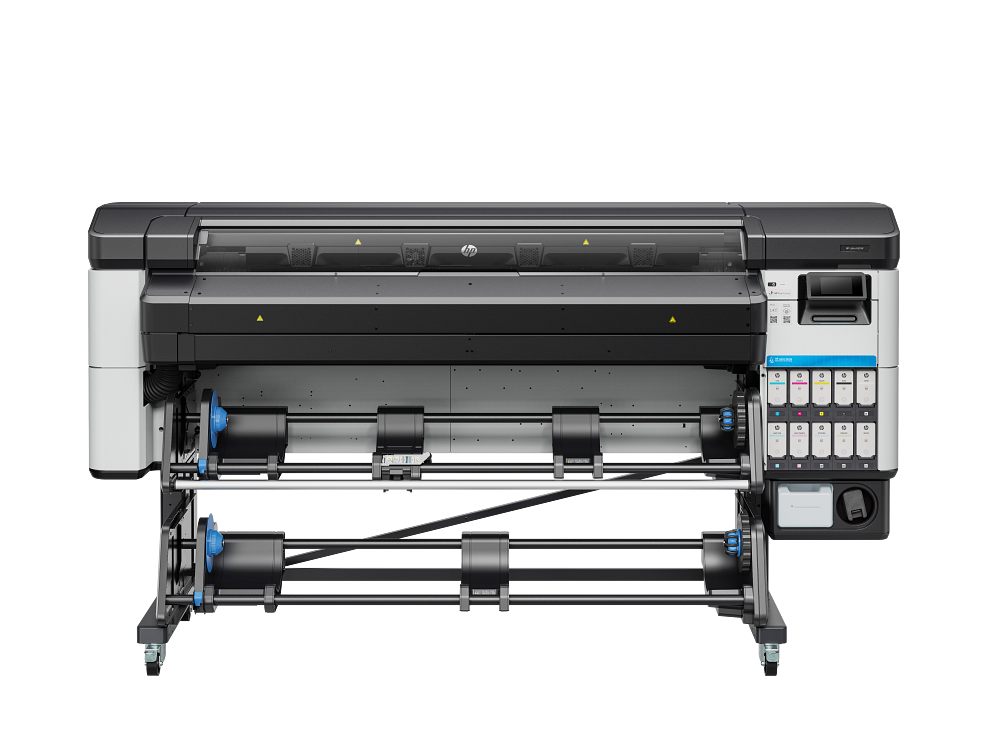

HP Latex 630
171S2A
The core 630: an 8-ink HP Latex printer for indoor and outdoor signage up to 1.6 m wide.
- 8 inks including optimiser and overcoat
- 1 litre HP 832 cartridges
- Up to 35 m²/hr
- Best if you don't need white ink or contour cutting
HP Latex 630 W
171K6A
Adds HP Latex white ink for window graphics, clear and coloured media.
- White ink with automatic recirculation
- White printhead parks offline when not in use
- Spot, underflood, overflood and 3-layer white
- Up to 260% white density

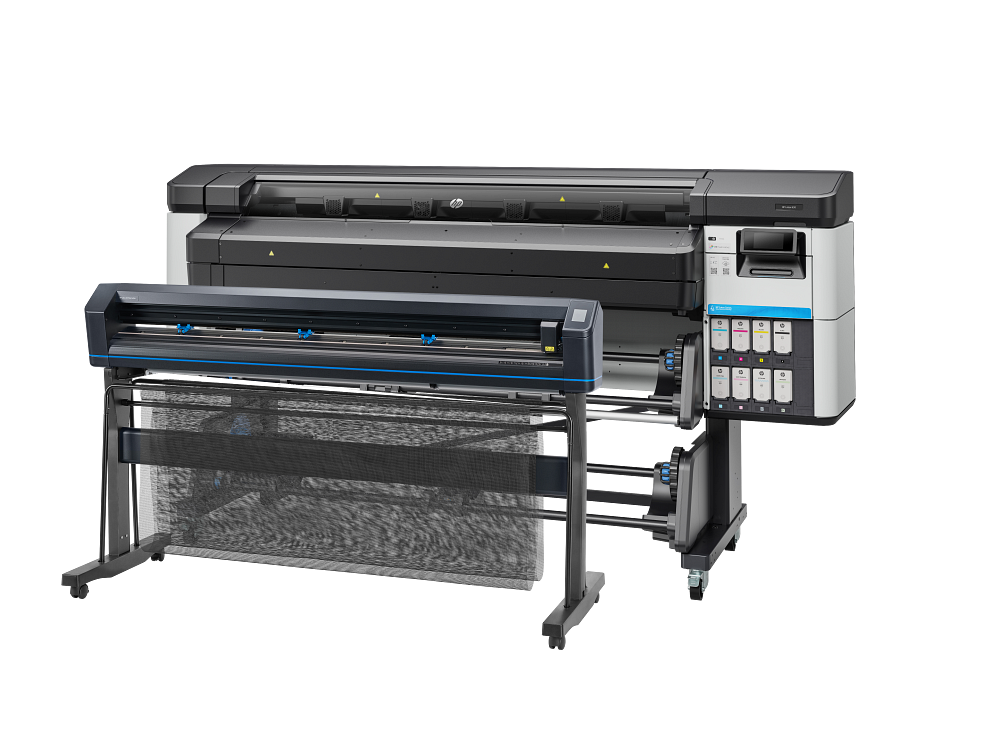

HP Latex 630 Print & Cut Plus
171K5A
The Latex 630 bundled with the HP Latex 64 Plus Cutter for stickers, decals and labels.
- Includes HP Latex 64 Plus Cutter with stand and basket
- SAi Flexi Print Cut software
- 158 cm cutting width, up to 113 cm/s
- Complete print-and-contour-cut workflow
HP Latex 630 W Print & Cut Plus
171K7A
White ink and contour cutting in one solution - the most versatile 630.
- Everything in the 630 W
- Includes HP Latex 64 Plus Cutter with stand and basket
- SAi Flexi Print Cut software
- Ideal for window decals and stickers on clear media
Request a quote
Choose your model and warranty and we'll come back to you with a quote.
Ink for the HP Latex 630
Genuine HP Latex inks. Prices exclude VAT.
HP 832 · 1 L
White
HP 832 1-Litre White Latex Ink Cartridge
- Part no.
- 4UV29A
- Size
- 1 L
Fits Latex 630 W, Latex 630 W Print & Cut Plus only
£93.64exc. VAT
Frequently asked questions
What's the difference between the Latex 630 and 630 W?
They share the same print engine, width and speeds. The 630 W adds HP Latex white ink - a white printhead, an ink-mixing container that recirculates the white automatically, and an offline chamber that parks the white printhead when you're printing CMYK only. Choose the W if you print on clear, coloured or metallic media.
What is the Print & Cut Plus solution?
It bundles the Latex 630 or 630 W with the HP Latex 64 Plus Cutter (with stand and basket) and SAi Flexi Print Cut software, so you can print and contour cut stickers, decals and labels in one workflow. The cutter has a 158 cm cutting width and cuts at up to 113 cm/s.
What warranty comes with the HP Latex 630?
The HP Latex 630 comes with HP's one-year limited hardware warranty as standard. When you buy from us you can extend your parts and labour cover to 2, 3, 4 or 5 years in total - just choose the term in the quote form above.
Can I trade in my old printer?
When HP is running a trade-in promotion you'll see it at the top of this page and in the quote form. Trade-ins aren't limited to HP - any make of large format printer can qualify. Give us the make, model and rough age and we'll include the trade-in in your quote.
Are HP Latex prints suitable for indoor environments?
Yes. HP Latex inks are water-based, so prints are odourless and the range holds UL ECOLOGO and UL GREENGUARD Gold certifications - which is why Latex is popular for wallcoverings, retail interiors, hospitals and schools.
What power supply does the Latex 630 need?
A 200 - 240 V single-phase supply with two power cords: a 5 A cord for the printer and a 12 A cord for the curing system. We'll confirm site requirements with you before installation.
