1 in stock

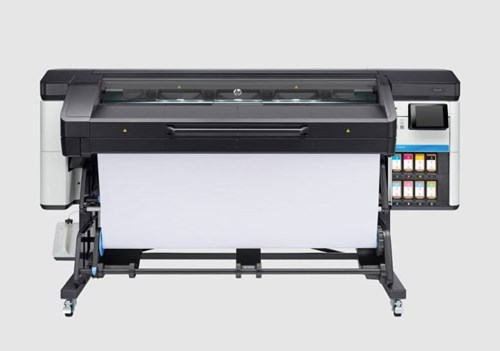

    HP Latex 700 printer

    SKU: Y0U22A

    HP Latex 700 Printer (Y0U22A)

    HP Latex 700 Printer (Y0U22A) All tech specs
    Functions

    Print

    Print speed

    105 m²/hr - Max Speed (1-pass); 31 m²/hr - High Speed (4-pass); 21 m²/hr - Production Fast (6-pass); 17 m²/hr - Production Quality, Textiles and Backlits (8-pass); 16 m²/hr - High Saturation (12-pass); 12 m²/hr - High Saturation Backlits and Textiles (14-pass) 1

    Print cartridge/bottle volume delivered

    1 L

    Ink types

    Water-based HP Latex Inks

    Print Cartridges/Bottle, Number

    8 (black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer, HP Latex Overcoat)

    Print heads

    8 (2 cyan/black, 2 magenta/yellow, 2 light cyan/light magenta, 1 HP Latex Optimizer, 1 HP Latex Overcoat)

    Print Cartridge/Bottle, Color(s)

    Black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer, HP Latex Overcoat

    Print quality color (best)

    Up to 1200 x 1200 dpi

    Finished output handling

    Roll feed, take-up reel, wiper roller 2, media saver, automatic horizontal cutter (for vinyl, banner and canvas 3, paper-based media, and film)

    Media sizes standard (metric rolls)

    457 to 1625-mm rolls (580 to 1625-mm rolls with full support)

    Roll external diameter

    250 mm

    Roll maximum input

    1

    Roll maximum weight

    55 kg

    Recommended media

    HP PVC-free Wallpaper (UL GREENGUARD GOLD Certified 4, FSC® certified 5, meets AgBB criteria 6); HP Photo-realistic Poster Paper; HP Premium Satin Canvas; HP Prime Matte Air GP (REACH compliant 7); HP Premium Removable Gloss Adhesive Vinyl (REACH compliant 7)

    Media thickness (metric)

    Up to 0.5 mm

    Media width, maximum

    1625 mm

    Supported Primary Applications

    Banners; Displays; Exhibition and event graphics; Exterior signage; Indoor posters; Interior decoration; Light boxes - film; Light boxes - paper; Murals; POP/POS; Posters; Textile; Vehicle graphics; Window graphics; Stickers

    Media types

    Banners, self-adhesive vinyls, films, fabrics, papers, wall coverings, canvas, synthetics, mesh, textiles 8

    Model size

    1626 mm

    Print technology

    HP Latex Printing Technologies

    Print repeatability

    95% of colours ≤ 1.5 dE2000 9

    Connectivity, standard

    Gigabit Ethernet (1000Base-T)

    Dimensions (W x D x H)

    2583 x 852 x 1402 mm

    Package dimensions (W x D x H)

    2800 x 1130 x 1270 mm

    Weight

    261 kg

    Package weight

    368 kg

    Acoustic power emissions (active, printing)

    7.8 B(A) (operating), 5.5 B(A) (idle), <3.5 B(A) (sleep)

    Acoustic pressure emissions

    60 dB(A) (operating), 38 dB(A) (idle), <20 dB(A) (sleep)

    Operating humidity range

    20 to 80% RH (non-condensing)

    Operating temperature range

    15 to 30ºC

    Operating temperature range

    59 to 86ºF

    Power consumption

    1.5-2.5 kW (5 kW peak) (printing), 95 W (ready), <4.7 W 10 (sleep) (<19 W 11 with DFE), <0.25 W (off)

    Power

    Input voltage (auto ranging) 200-240 V (±10%) two wires and PE; 50/60 Hz (±3 Hz); two power cords; 9 A max printer power cord; 13 A max curing power cord

    Electromagnetic compatibility

    Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC)

    Energy star certified

    Yes

    Environmental certification

    ENERGY STAR®, RoHS (WEEE, EU, EAEU, China, Korea, India, Ukraine, Turkey), REACH, EPEAT, OSHA, CE marking compliant, Meets AgBB criteria, French VOC A+, UL GREENGUARD Gold, UL ECOLOGO

    Safety

    IEC 60950-1+A1+A2 compliant; IEC 62368-1 compliant; USA and Canada (CSA listed); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, and Kazakhstan (EAC); China (CCC)

    Manufacturer Warranty

    One-year limited hardware warranty

    What's in the box

    HP Latex 700 Printer, printheads, maintenance cartridge, printer stand, take-up reel, media feed accessory, user maintenance kit, edge holders, quick reference guide, documentation software, power cords, air purgers, 2-in spindle adaptor



    Maintenance Cover Plan ONLY £130.00 per month on Direct Debit (Click here)

    PDF Spec Sheets

    latex 700 datasheet.pdf
     HP Latex 700w 800w HARD DRIVE KIT Y0U21-67116
    HP Latex 700w 800w HARD DRIVE KIT Y0U21-67116
    £123.50

    more details

     HP Latex 700w 800w Y0U21-67013 Encoder strip and sensor 64
    HP Latex 700w 800w Y0U21-67013 Encoder strip and sensor 64
    £123.50

    more details

     HP Latex 700w Y0U21-67168 TAKE-UP REEL MOTOR ASSEMBLY
    HP Latex 700w Y0U21-67168 TAKE-UP REEL MOTOR ASSEMBLY
    £97.50

    more details

     HP Latex 700w Y0U21-67014 LUBRICATION FELTS KIT
    HP Latex 700w Y0U21-67014 LUBRICATION FELTS KIT
    £65.00

    more details

     HP Latex 700w  Y0U21-67070 Substrate advance roller bushings
    HP Latex 700w Y0U21-67070 Substrate advance roller bushings
    £48.10

    more details

     HP Latex 700w 800w Y0U21-67015 Carriage Flex Cables
    HP Latex 700w 800w Y0U21-67015 Carriage Flex Cables
    £45.50

    more details

     HP Latex 700w 800w Y0U21-67101 Front Panel PCA BOARD
    HP Latex 700w 800w Y0U21-67101 Front Panel PCA BOARD
    £78.00

    more details

     HP Latex 700w 800w Y0U21-67080 Rewinder/takeup reel motor assy
    HP Latex 700w 800w Y0U21-67080 Rewinder/takeup reel motor assy
    £84.50

    more details

     HP Latex 700 700w 800 800w 8 Ink Tube System Y0U21-67138
    HP Latex 700 700w 800 800w 8 Ink Tube System Y0U21-67138
    £1,077.00

    more details

     HP Latex 700 700w 800 800w - Substrate Advance Motor - Y0U21-67068
    HP Latex 700 700w 800 800w - Substrate Advance Motor - Y0U21-67068
    £243.50

    more details

     HP Latex 700 700w 800 800w - Y0U21-67114 - CURING POWER DISTRIB BOARD
    HP Latex 700 700w 800 800w - Y0U21-67114 - CURING POWER DISTRIB BOARD
    £85.50

    more details

     HP Latex 700 700w 800 800w - Y0U21-67005 - Printhead cleaning roll motor assy
    HP Latex 700 700w 800 800w - Y0U21-67005 - Printhead cleaning roll motor assy
    £139.00

    more details

     HP Latex 700 700w 800 800w - Y0U21-67066 - Cutter Module
    HP Latex 700 700w 800 800w - Y0U21-67066 - Cutter Module
    £82.00

    more details

     HP Latex 700 700w 800 800w - Y0U21-67225 - MEDIA DRIVE ASSY TOOL
    HP Latex 700 700w 800 800w - Y0U21-67225 - MEDIA DRIVE ASSY TOOL
    £129.00

    more details

     HP Latex 700 700w800  800w - CARRIAGE PCA BOARD - Y0U21-67021
    HP Latex 700 700w800 800w - CARRIAGE PCA BOARD - Y0U21-67021
    £216.25

    more details

     HP Latex 700 700w 800 800w - POWER PCA BOARD - Y0U21-67107
    HP Latex 700 700w 800 800w - POWER PCA BOARD - Y0U21-67107
    £294.00

    more details

     HP Latex 700 700w 800 800w - SAX components - Y0U21-67244
    HP Latex 700 700w 800 800w - SAX components - Y0U21-67244
    £498.54

    more details

     HP Latex 700w 800w White Ink Supply Station PCA Y0U21-67113
    HP Latex 700w 800w White Ink Supply Station PCA Y0U21-67113
    £123.50

    more details

    Maintenance Cover per month - covering HP Latex 700 printer
    Maintenance Cover per month - covering HP Latex 700 printer
    £130.00

    more details

    HP Latex 700 Designjet Printer System Error Code or print quality issue, book your breakdown repair callout with 1st Call 4 Service
    HP Latex 700 Designjet Printer System Error Code or print quality issue, book your breakdown repair callout with 1st Call 4 Service
    £200.00

    more details

    £24,045.00

    Fixed Rate Payments With Tax Relief

    Lease Term 5 Years
    Weekly Payment £124.85
    First Payment £1,623.04
    57 Monthly Payments £541.01
    Total Cost £32,460.75
    Tax Relief @ 19% -£6,167.54
    Nett Cost Of Finance £26,293.21
