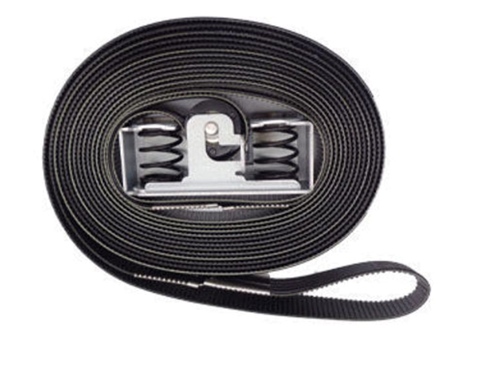

42" Carriage Belt

Part Number:
CQ109-67004

Product codes for other 42" Belts

•
• HP Designjet Z6200 42-inch Printer CQ109A, CQ109AR

--------------------------------------------------------------------------------

The Carriage Belt Connects to the Carriage Assembly and the Scan Axis Motor to pull
the Carriage Assembly into position. The Scan Axis Motor is located on the left of the printer.  Tension is created on the opposite side of the printer using a Tension Assembly.

System Error Code: Printhead Path 2

The Carriage belt can be the cause a multiple different system error codes, a
majority of them link to an 'obstruction' near the Carriage Assembly, as the Carriage belt may be damaged or not connected properly.

Replace Carriage Belt

--------------------------------------------------------------------------------
