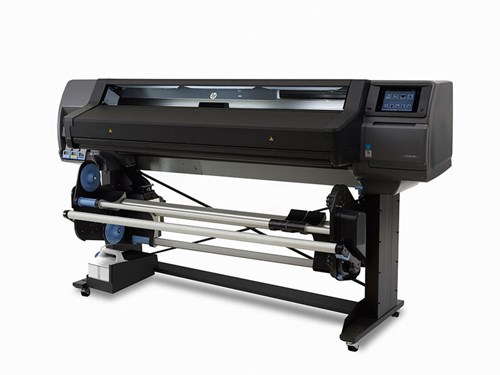

    Hewlett Packard Latex 560 Printer - 64in

    SKU: M0E29A

    Gain true versatility

    Addressing a diverse range of applications and production needs the new HP Latex 560 series offers a host of features which improve both its ability to handle peaks in production without compromising quality and application versatility. This next generation outdoor printer from HP has several new features that enable it to handle any job effortlessly including a new spindleless media pivot table which allows you to load media rolls up to 55kg in weight, a series of new print modes which allow 50 percent more ink density for applications such as backlit films and textiles and a 30-50 percent performance increase in print speed compared to the Latex 360 series.

    Combined this with its simple and intuitive 8 inch touchscreen interface and a host of built in features the Latex 560 makes it one of the most productive and versatile printers on the market today.

    Automated colour management

    Simplified and automated colour management direct from the large 8 inch colour touchscreen interface enables you to download substrate profiles from HP's online portal or create your own thanks to its built-in i1 spectrophotometer.

    Confidently print more for longer

    Load rolls in one minute with the new spindleless front loading pivot table capable of holding rolls up to 100 meters in length (55kg in weight) and high capacity motorised take up reel allows you confidently print more for longer.

    Print on more materials

    Expand into textile signage and other porous materials and print full bleed thanks to the new embedded ink collector system and new media wiper system that allows high quality prints to be achieved on lower cost banner and vinyls.

    Highly durable output

    Achieve high quality prints all at production speeds thanks to the new HP Latex optimiser ink which rapidly immobilizes pigments on the surface of a material and produces prints that are scratch and weather resistant comparable to that of hard solvent inks for up to 3 years outdoors without lamination.

    Printing modes
    91 m²/hr (980 ft²/hr) - Max Speed (1-pass)
    31 m²/hr (334 ft²/hr) - Outdoor High Speed (4-pass 4-color)
    28 m²/hr (301 ft²/hr) - Outdoor Plus (4-pass)
    23 m²/hr (248 ft²/hr) - Indoor Quality (6-pass)
    14 m²/hr (151 ft²/hr) - Indoor High Quality (10-pass)
    6 m²/hr (69 ft²/hr) - Backlits, Textiles, and Canvas (16-pass)
    5 m²/hr (54 ft²/hr) - High Saturation Textiles (20-pass)
    Print resolution
    Up to 1200 x 1200 dpi
    Margins
    5 x 5 x 0 x 0 mm (0.2 x 0.2 x 0 x 0 in) (without edge holders)
    Ink types
    HP Latex Inks
    Ink cartridges
    Black, cyan, light cyan, light magenta, magenta, yellow,
    HP Latex Optimizer
    Cartridge size
    775 ml
    Printheads
    7 (2 cyan/black, 2 yellow/magenta, 1 light magenta/light cyan, 2 HP Latex Optimizer)
    Color consistency
    Average <= 1 dE2000, 95% of colors <= 2 dE2000
    Handling
    Roll feed; take-up reel; wiper roller; roll lifter; automatic cutter (for vinyl, paper-based media, backlit polyester film)
    Media types
    Banners, self-adhesive vinyls, films, fabrics, papers, wallcoverings, canvas, synthetics, mesh, textiles
    Roll size
    254 to 1625-mm (10 to 64-in) rolls (580 to 1625-mm
    (23 to 64-in) rolls with full support)
    Roll weight
    55 kg (121 lb)
    Roll diameter
    250 mm (9.8 in)
    Thickness
    Up to 0.5 mm (19.7 mil)
    Applications
    Banners, Displays, Double-sided banners, Exhibition, Event graphics, Exterior signage, Indoor posters, Interior decoration, Light boxes – film, Light boxes – paper, Murals, POP/POS, Posters, Textiles, Vehicle graphics
    Interfaces (standard)
    Gigabit Ethernet (1000Base-T)
    Printer Dimensions (w x d x h)
    2560 x 792 x 1420 mm (101 x 31 x 56 in)
    Shipping Dimensions (w x d x h)
    2750 x 1037 x 1689 mm (108 x 41 x 67 in)
    Operating area
    2761 x 1792 mm (109 x 71 in)
    Printer Weight
    220 kg (485 lb)
    Shipping Weight
    330 kg (728lb)

    PDF Spec Sheets

    560 DataSheet.pdf

    This is what is included in the box for: Hewlett Packard Latex 560 Printer - 64in

    Latex 560 Printer/ printheads/ maintenance cartridge/ ink collector/ output platen protector/ floor stand/ roll lifter/ take-up reel/ loading accessory/ user maintenance kit/ edge holders/ software/ power cords
